TL;DR
- F-150 box length depends on the cab: 6.5 or 8 ft on Regular Cab, 6.5 ft on SuperCab, 5.5 or 6.5 ft on SuperCrew.
- The F-150 Raptor's front track is 74.0–74.3 in against 67.9 in on a standard SuperCrew, so it needs Raptor-specific bumpers and flares.
- The Bronco roof is rated 110 lb dynamic and 450 lb static, and the static rating doesn't apply with 35-inch tires.
- The Sasquatch Package doesn't widen the Bronco's track; Base and Badlands are both 65.0 in.
- Size a winch at GVWR × 1.5 (WARN): about 9,400 lb for a 2.3L Ranger 4x4 and 10,300 lb for a Bronco Raptor.
At a Glance
| 2026 model | Front track | GVWR range | Fitment detail to check first |
|---|---|---|---|
| F-150 (SuperCrew) | 67.9 in | See door-jamb label | Box length: 5.5, 6.5 or 8 ft by cab |
| F-150 Raptor | 74.0–74.3 in | See door-jamb label | Raptor-specific bumpers and flares |
| Bronco (Base, Badlands) | 65.0 in | 5,540–6,250 lb | 2-door or 4-door; roof load limits |
| Bronco Raptor | 73.2 in | 6,850 lb | Wider body and 37-inch tires |
| Ranger (XL, XLT, Lariat) | 63.8 in | 6,050–6,270 lb | SuperCrew with 4.97-ft box only |
| Ranger Raptor | 67.3 in | 6,790 lb | Wider track than other Rangers |
F-150: Cab, Box and Axle Code
Ford's 2026 F-150 specifications list three cabs and three box lengths, so "F-150" alone doesn't identify a bed:
| Cab | Box options |
|---|---|
| Regular Cab | 6.5 ft, 8 ft |
| SuperCab | 6.5 ft |
| SuperCrew | 5.5 ft, 6.5 ft |
| Box | Inside length at floor | Between wheelhouses | Volume |
|---|---|---|---|
| 5.5 ft | 67.1 in | 50.6 in | 52.8 cu ft |
| 6.5 ft | 78.9 in | 50.6 in | 62.3 cu ft |
| 8 ft | 97.6 in | 50.6 in | 77.4 cu ft |
Tonneau covers, bed racks and drawer systems are sold by box length, so check yours before ordering. See tonneau covers and bed accessories. For hitch and towing parts, the axle ratio matters too: Ford's towing guide says to read the two-digit code under “AXLE” on the Safety Compliance Certification Label, on the left front door lock facing or door latch post pillar. Our F-150 towing capacity guide explains how the rating changes with configuration.

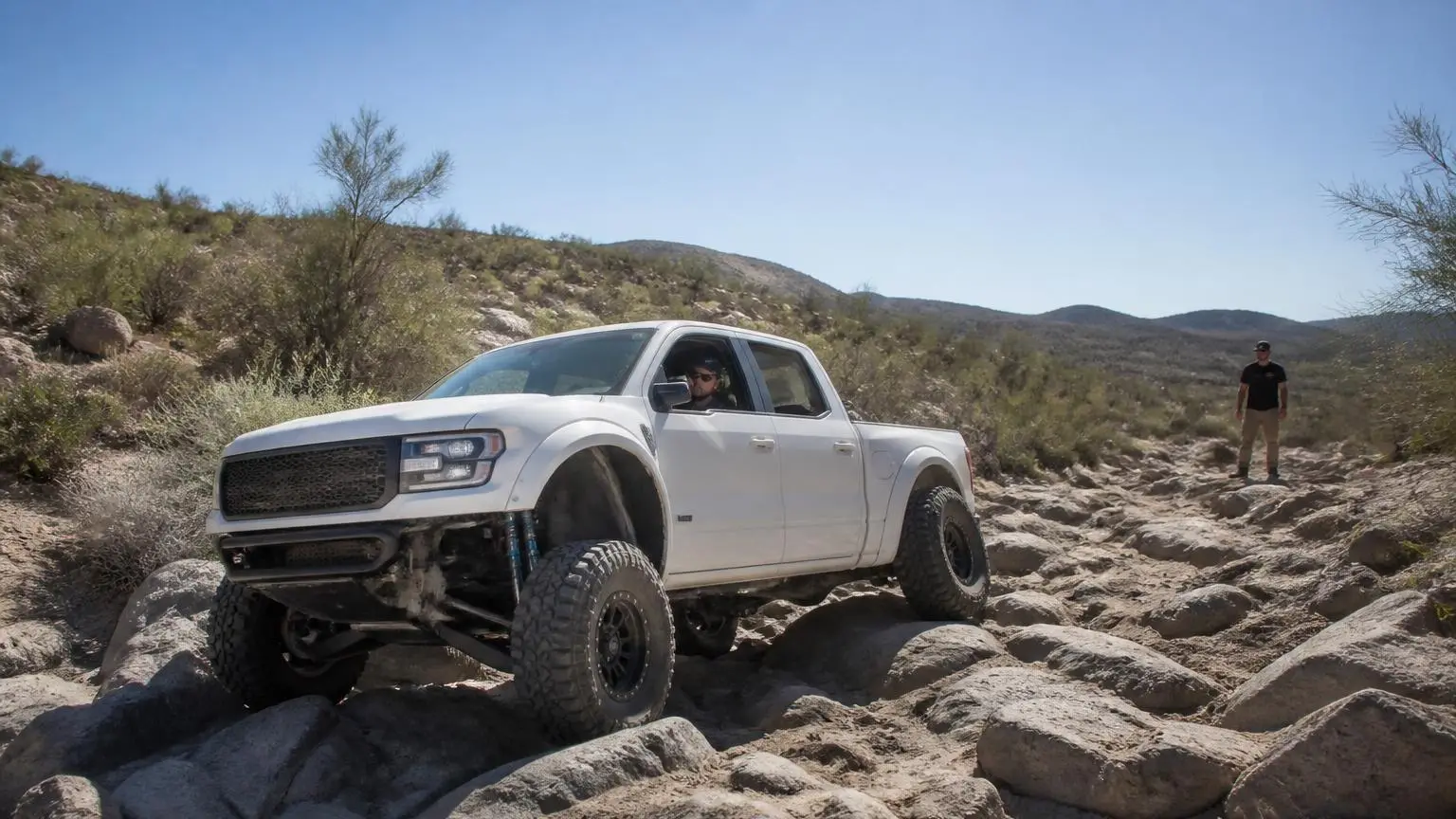

F-150 Raptor: Wider Track, Different Suspension
The Raptor is built wider than any other F-150. Ford's 2026 specs list its front track at 74.0 inches with 35-inch tires and 74.3 with 37s, against 67.9 inches on a standard SuperCrew. Width without mirrors reaches 86.6 inches, against 79.9. Ford's 2024 Raptor specifications describe a five-link coil-spring rear suspension with a Panhard rod and electronically controlled FOX shocks. Factory tires are LT315/70R17 or 37x12.5R17. Bumpers, fender flares and rock sliders built for a standard F-150 don't account for that width, so buy parts listed for the Raptor.
Bronco: Roof, Doors and Suspension Packages
The Bronco's roof comes off in panels, so a roof rack needs Bronco-specific mounting rather than a pickup's gutter or track mount. Ford publishes the loads and panel weights:
| 2026 Bronco item | 2-door | 4-door |
|---|---|---|
| Roof load, dynamic (moving) | 110 lb | 110 lb |
| Roof load, static | 450 lb | 450 lb (not with 35-inch tires) |
| Front roof panels (left/right) | 14.0 / 15.4 lb | 13.6 / 14.5 lb |
| Door weight | 62 lb (front) | 55 / 44 lb (front/rear) |
A rack's own rating doesn't raise the roof's. The Bronco's suspension also comes in four HOSS packages, and a lift or tire upgrade has to match yours:
| Package | Shocks (Ford) | Standard on |
|---|---|---|
| HOSS 1.0 | HOSS-tuned heavy-duty monotube | Base, Big Bend, Outer Banks |
| HOSS 2.0 | Position-sensitive Bilstein off-road monotube | Badlands, Heritage Edition; with the Sasquatch Package on Base, Big Bend, Outer Banks |
| HOSS 3.0 | FOX with internal bypass | Stroppe Edition; with the Sasquatch Package on Badlands |
| HOSS 4.0 | FOX 3.1 internal bypass with Live Valve | Raptor |
The Sasquatch Package adds 35-inch tires but doesn't change the track: Ford lists 65.0 inches for both Base and Badlands. Heritage and Stroppe Editions run a 66.9-inch track and the Bronco Raptor 73.2 inches front. Steel bash plates are standard on Heritage Edition, Badlands, Stroppe Edition and Raptor.
For recovery, Ford's Bronco owner's manual says the recovery hooks are mounted to the vehicle's structure and are for pulling the vehicle out when stuck with a winch, strap or open hook. It also says not to use them to tow the Bronco recreationally.
Ranger: One Cab, One Box, Mid-Size Frame
For 2026 Ford builds the Ranger only as a SuperCrew with a 4.97-foot box: 59.6 inches long at the floor and 48.2 inches between the wheelhouses. Its track is 63.8 inches, or 67.3 inches on the Ranger Raptor, so F-150 bumpers, bed parts and steps don't fit. Ford lists these weights:
| 2026 Ranger | Curb weight | GVWR | Max payload | Max towing |
|---|---|---|---|---|
| 2.3L EcoBoost 4x2 | 4,240 lb | 6,050 lb | 1,767 lb | 7,500 lb |
| 2.3L EcoBoost 4x4 | 4,462 lb | 6,270 lb | 1,763 lb | 7,500 lb |
| 2.7L EcoBoost V6 4x4 | 4,610 lb | 6,170 lb | 1,513 lb | 7,500 lb |
| Raptor 3.0L EcoBoost V6 | 5,363 lb | 6,790 lb | 1,373 lb | 5,510 lb |
A steel bumper, winch and skid plates all come out of that payload figure.
Winch Sizing by GVWR
WARN's rule is minimum line pull = GVWR × 1.5, using the GVWR on the door-jamb label rather than curb weight. Applied to Ford's published 2026 figures:
| Vehicle | GVWR (Ford) | Minimum line pull |
|---|---|---|
| Ranger 2.3L 4x4 | 6,270 lb | 9,405 lb |
| Ranger Raptor | 6,790 lb | 10,185 lb |
| Bronco 4-door Badlands, 2.7L | 6,250 lb | 9,375 lb |
| Bronco Raptor | 6,850 lb | 10,275 lb |
Ford's F-150 spec sheet doesn't list GVWR by configuration, so read it from your truck's label. See the recovery gear hub for recovery-point basics.
How We Cover Ford Fitment
Figures on this hub come from Ford's 2026 F-150, Bronco and Ranger technical specifications, its 2024 Raptor specifications, the 2026 RV and Trailer Towing Guide, the Bronco owner's manual and WARN's winch-sizing guidance. We don't buy, install or test this gear ourselves. See how we rank and our affiliate disclosure.
